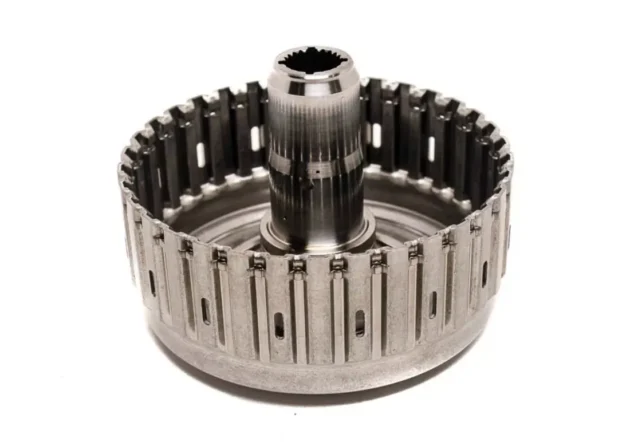

Ford AODE / 4R70W / 4R75W Bare Direct Drum (6 Clutch Pack) 1990-2012
The Ford AODE / 4R70W / 4R75W bare direct drum (6 clutch pack design) is engineered for performance-driven automatic transmission builds. This direct drum fits Ford’s AODE, 4R70W, and 4R75W transmissions and supports both stock rebuilds and high-performance applications. It houses the direct clutch pack, which engages during 3rd and 4th gear operation, making it critical for smooth shifting, torque transfer, and long-term durability.
This 6-clutch drum configuration increases holding capacity compared to early 4-clutch or 5-clutch setups. As a result, it handles higher torque loads in performance builds, towing applications, and upgraded street vehicles. Builders commonly install this drum when upgrading clutch packs, improving line pressure, or reinforcing the transmission for modified engines.
The AODE transmission debuted in 1992 and later evolved into the 4R70W and 4R75W platforms. The 4R70W introduced improved gear ratios and stronger internals, while the 4R75W added electronic and torque capacity upgrades. Importantly, the direct drum design remains interchangeable across many AODE, 4R70W, and 4R75W units when properly matched to input shaft design, mechanical diode/sprag type, and clutch configuration.
Before purchasing, always confirm:
-
Transmission model (AODE, 4R70W, or 4R75W)
-
Production year
-
Input shaft spline count
-
Mechanical diode or roller clutch style
-
Desired clutch count (6-clutch setup)
Additionally, pairing this drum with upgraded frictions, steels, and a performance valve body ensures optimal performance and long-term reliability. Professional builders often combine it with complete overhaul kits and reinforced input shafts for best results.
4R70W / 4R70E Transmission Parts
4R75W / 4R75E Transmission Parts
Vehicle Compatibility
Common Ford Applications
-
F-150 (1993–2010, 4R70W / 4R75W)
-
Mustang GT (1994–2004, AODE / 4R70W)
-
Crown Victoria (1992–2011, AODE / 4R70W / 4R75W)
-
Grand Marquis (1992–2011)
-
Explorer (1996–2010, 4R70W / 4R75W)
-
Expedition (1997–2006)
Transmission Identification
-
AODE – Electronic overdrive automatic (1992–1995)
-
4R70W – Wide-ratio electronic automatic
-
4R75W – Updated wide-ratio electronic automatic
Always verify transmission tag information and build specifications before installation. Proper identification prevents clutch clearance issues, spline mismatch, or internal failure. Correct drum selection ensures firm shifts, improved durability, and dependable performance under load.
